What is hdpe plastic liner / uhmwpe liner ?
The advantages are self-lubrication, wear resistance and Impact resistance of UHMWPE make it to be chosed by the chute liner, coal bunker liner, truck liner, mixing silo liner and other project whose convey or cohere easily when it been unloaded and delivered .

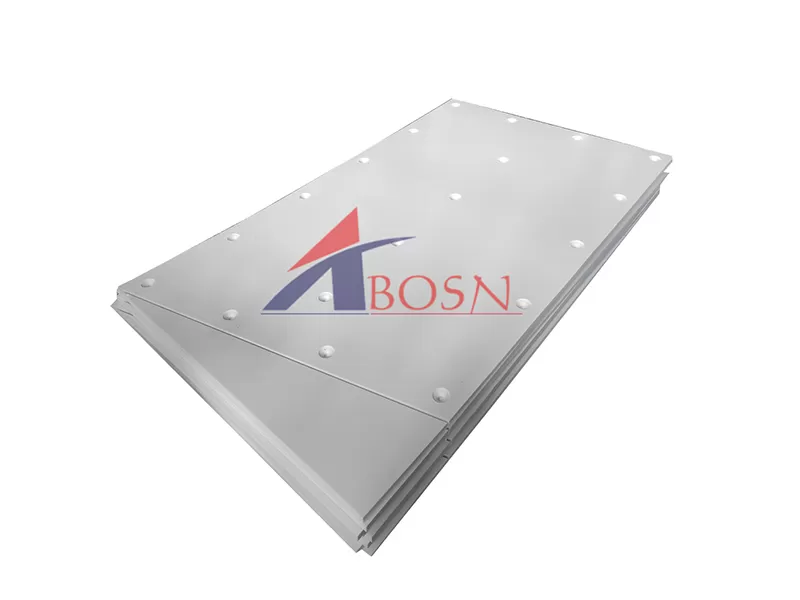

The UHMWPE truck liner is the best supporting facilities to protect the truck with the feature of non-stick, fast unloading, wear resistance and corrosion resistance. It is provide the fast and stable deliver of coal, cement, wheat, sugar and other powder and granular product. The UHMWPE truck liner / coal liner is can be made as your requirement . Any size, color and logo are available .
Property | Value |
Density | 0.94~0.98 g/cm³ |
Working temperature | -269~85℃ |
Melting temperature | 130~160℃ |
Elongation break | 350% |
Tensile strength | 45.3MPa |
Rockwell hardness | R57 |
Bending strength | 23MPa |
Compressive strength | ≥30 MPa |
Impact strength | 100~160KJ/m³ |
Charpy notched impact strength | ≥140 KJ/m² |
Ball indentation hardness | ≥40 N/mm² |
Heat conductivity | 0.14~0.16%(m/m) |
Water absorption | ≤0.01% |
Key properties of UHMWPE liner, coal bunker liner:
·No incrustatons of bulkmaterial
· No bridging caused in hoppers
· Enhanced protection of plan tand machinery against wear
· Faster bulk material flow
· Costo flining exist hopper with PE1000 is one third of the cost of mild steel
· PE-UHMW is half the weight of steel, despite being three times as thick

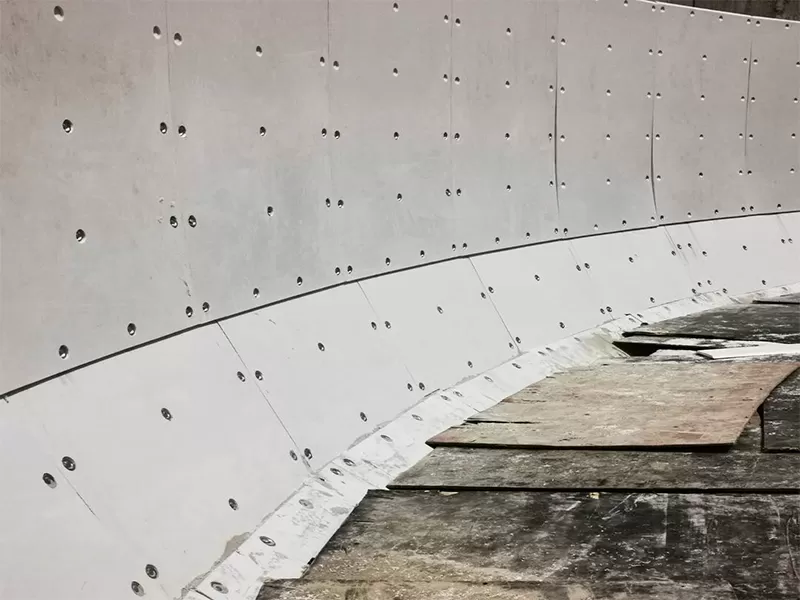

UHMWPE Coal Bed Chute Liners will help eliminate sticking problems. In the processing of bulk goods, equipment is often lined with a UHMW plastic material to promote the efficient flow of goods from one process or stage to the next. These liners for chutes, hoppers, silos, and industrial truck beds offer low friction and are abrasion and corrosion resistant, providing a long wear-life and reducing downtime in processing plants. They can be fastened to concrete, gunite, steel, and wood, making them both effective and versatile.
Application
1)Hopper Liners
2)Blacktop Liners
3)Gravity Box Liners
4)Dump Truck Liners
5)Forage Box Liners
6)Forage Wagon Liners
7)Manure Spreader Liners
8)Air Boat Hull Bottom Liners
9)Lime Tender Liners
10)Overhead Bin Liners
11)Sand Spreader Liners
12)Roll Off Trailer Liners
13)Container Trailer Liners
14)Side Dump Trailer Liners
15)Off Road Dump Trailers
