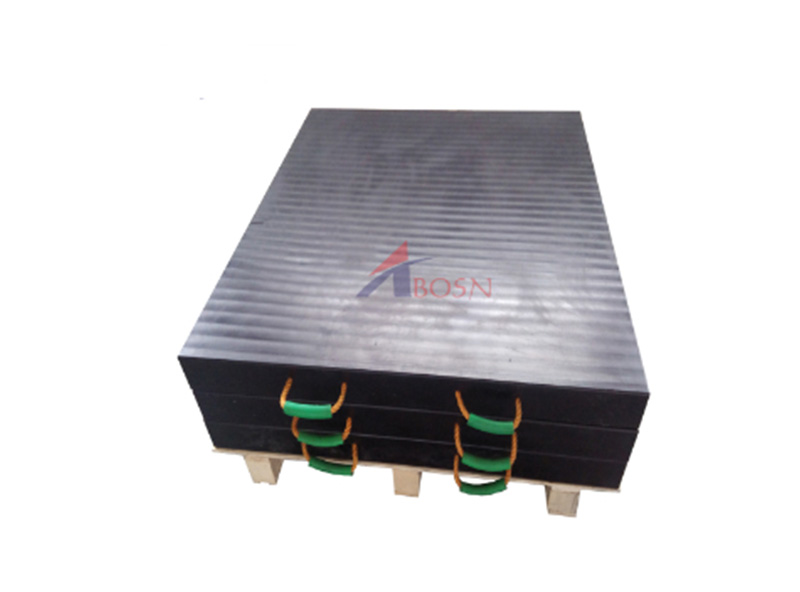

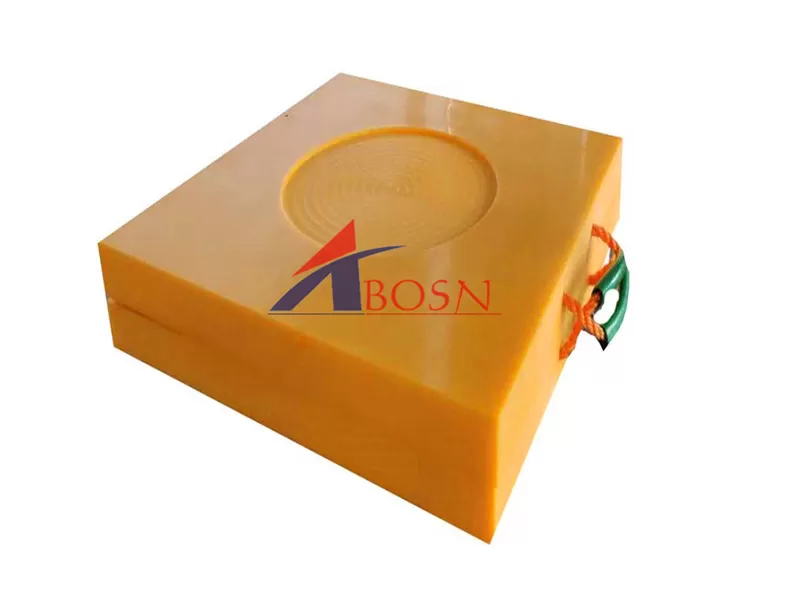

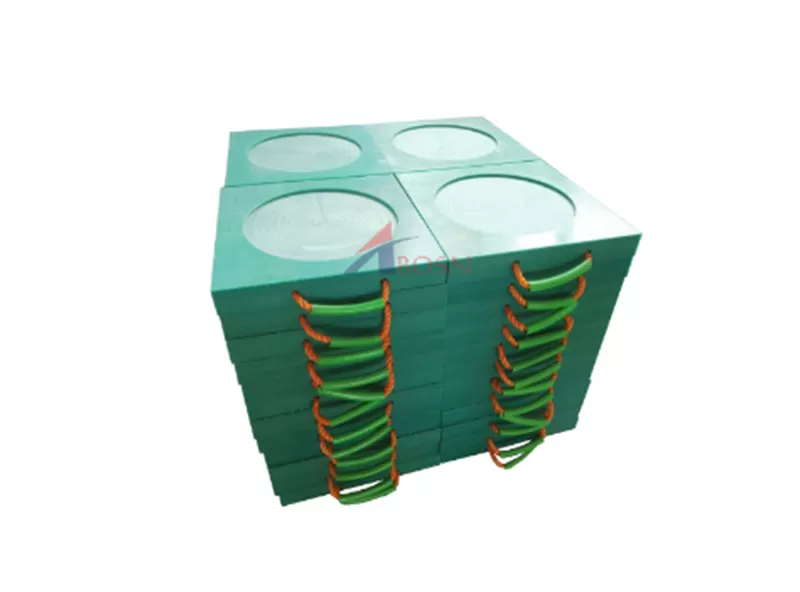

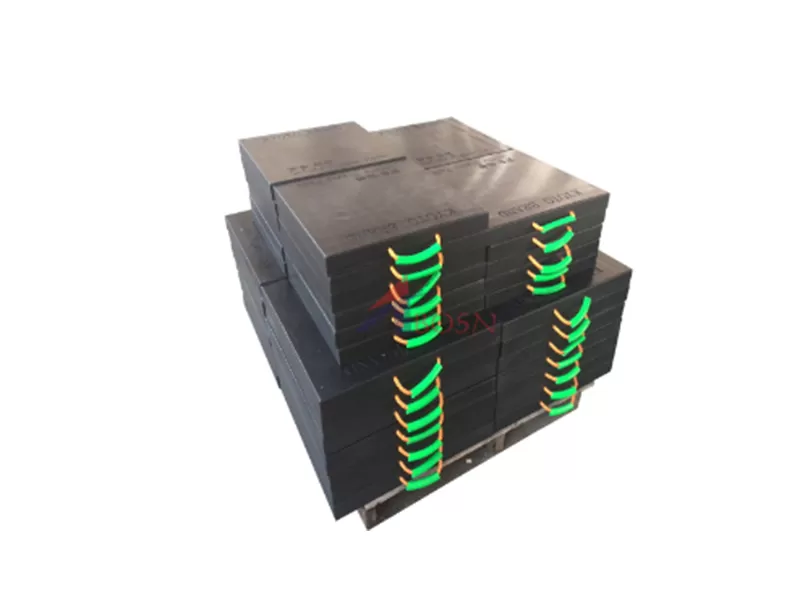

UHMWPE outrigger pads for sale / crane outrigger pads handle pads handle:
UHMWPE outrigger pads for sale / crane outrigger pads features :
1. Do not absorb moisture and will not swell up over time due to exposture outdoors.
2. Good impact intensity, do not decrease the impact strength over time.
3. Good breaking elongation, so they will bend but not break under extreme loads.
4. Non-stick surface, easy to clean.
5. Corrosion and chemical resistant.
6. Can work in bad weather conditions.
7. Durable lasting, low cost and efficient working compared to steel or aluminum.
8. Amazingly light compared to steel pads, and easier to mount and replace.
9. Will not rod, crack, splinter, much safer to use in the field compared to other wood based pads.
10. Lower maintenance cost.
11. Storage-Friendly.
Uhmwpe outrigger pads Load- Bearing for your reference:
| Dimensions (mm)Square | Weight(Kg) | Vertical JackCapacity( tonne ) | Crane Capacity( tonne) |
| 400X400X40 | 6.3 | 10 | 12 |
| 500X500X40 | 9.9 | 12 | 15 |
| 600X600X40 | 14.2 | 20 | 25 |
| 700X700X40 | 19.4 | 22 | 30 |
| 800X800X40 | 25.3 | 25 | 30 |
| 1000X1000X40 | 39.2 | 30 | 35 |
| 400X400X50 | 8 | 11 | 15 |
| 500X500X50 | 12.2 | 15 | 18 |
| 600X600X50 | 18 | 23 | 30 |
| 800X800X50 | 31.3 | 30 | 35 |
| 1000X1000X50 | 48 | 40 | 50 |
| 400X400X60 | 9.5 | 12 | 15 |
| 500X500X60 | 14.5 | 20 | 25 |
| 600X600X60 | 21.2 | 25 | 30 |
| 800X800X60 | 38.4 | 35 | 45 |
| 1000X1000X60 | 58.5 | 50 | 65 |
| 1200X1200X60 | 85 | 70 | 80 |
| 800X800X70 | 44 | 40 | 50 |
| 1000X1000X70 | 68.5 | 70 | 80 |
| 800X800X80 | 50.4 | 50 | 60 |
| 1000X1000X80 | 78 | 80 | 100 |
| 1200X1200X80 | 113 | 100 | 120 |
| 1000X1000X100 | 98 | 110 | 140 |
| 1200X1200X100 | 141 | 140 | 160 |

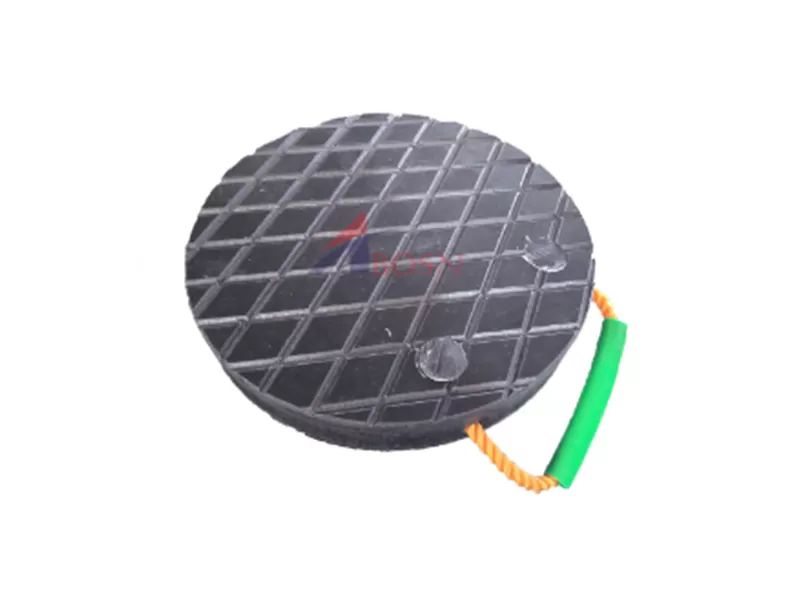

| Dimensions (mm) | Weight(Kg) | Vertical JackCapacity( tonne ) | Crane Capacity( tonne) |
| OD800X50 | 25 | 25 | 30 |
| OD900X50 | 30 | 30 | 40 |
| OD1000X50 | 38.5 | 35 | 45 |
| OD800X60 | 30 | 30 | 35 |
| OD900X60 | 37.5 | 35 | 45 |
| OD1000X60 | 40 | 40 | 50 |
| OD1000X80 | 61.5 | 70 | 80 |
| OD1200X80 | 110 | 100 | 120 |
Heavy duty jacking pads
Stabilizer pad for crane
Crane outrigger pads
Crane foot support plate
UHMWPE /HDPE Jacking pads
UHMWPE /HDPE Cribbing plates
Polyethylene utrigger pads,
HDPE plastic stabilizer pad
Crane support pad
If you have any request, feel free contact with us freely
