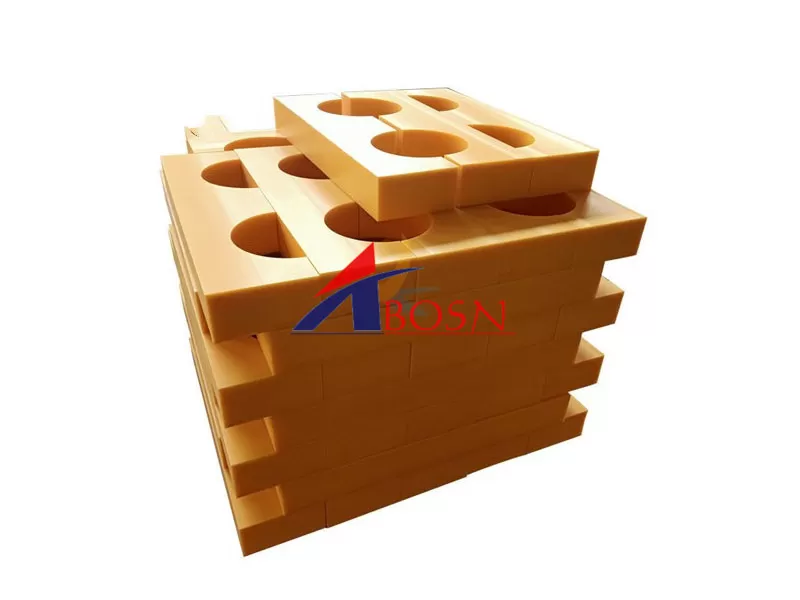

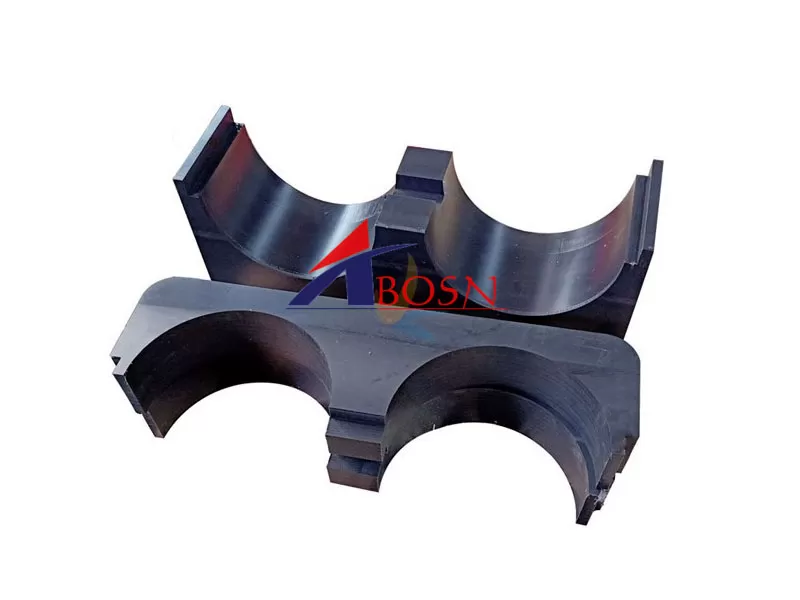

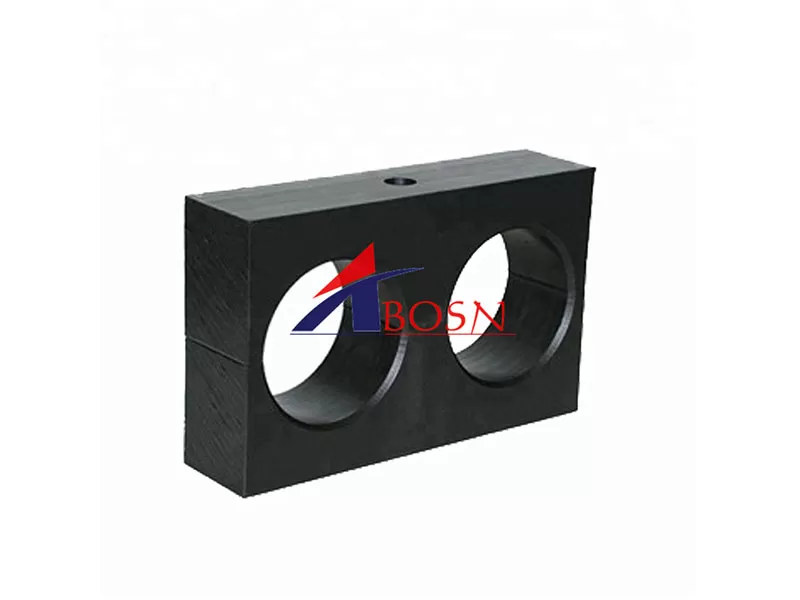

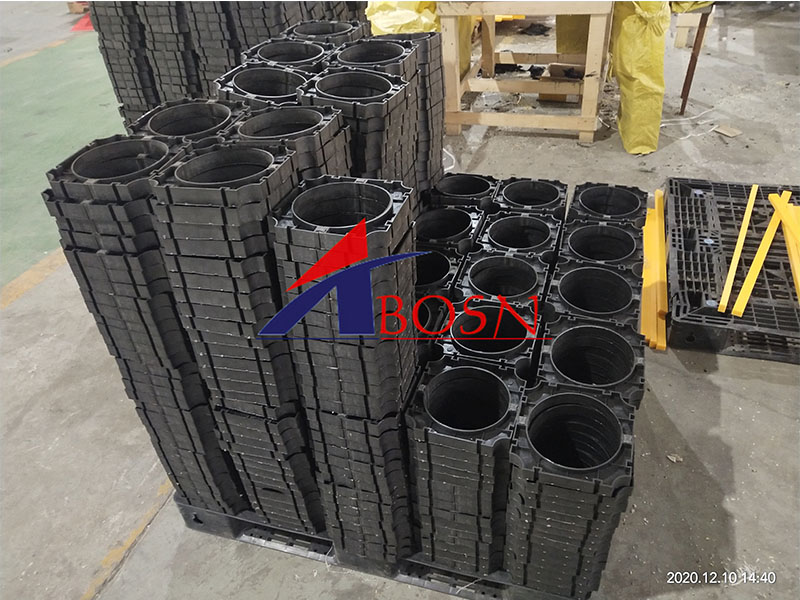

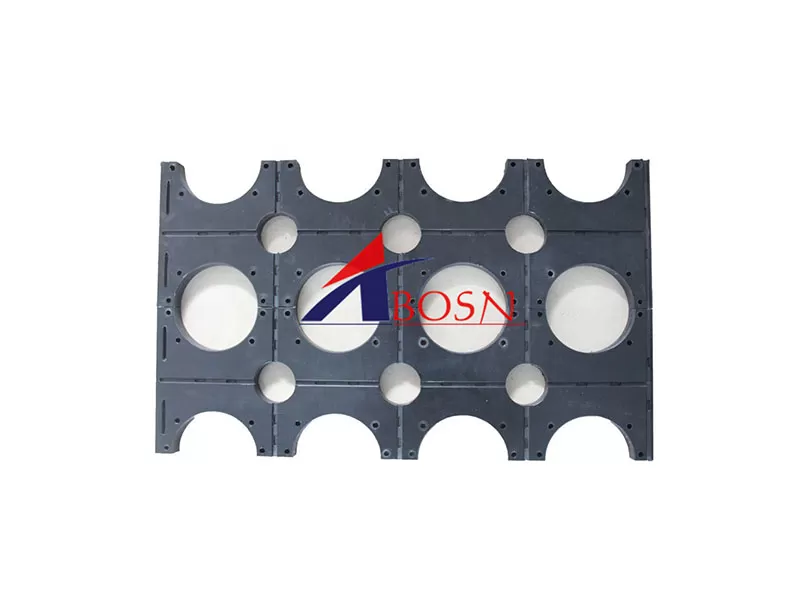

These spacers are designed to support various conduit bundles during installation and also reduce load and stress. This method of support protects the conduit lines and the installed cables within. An added benefit is the well-organized design which improves the ease of installation, and improves identification for any future installations and repairs. These trench spacers can improve installation times and maximizes the use of space within the trench.Our customers specify the material specifications, conduit spacing, hole size and separation between duct runs, and we produce your parts, on-time and on-budget.
Product Advantages Of UHMW-PE hdpe pipe support
1.High notched izod strength - Paddles will not crack at corners or under stress
2.Excellent sub-zero performance
3.High heat temperatures no problem
4.Very abrasion resistant
6.Zero water absorption (means less product sticking to conveyor paddles)
6Color coded material available for easy identification
Item | Test result | Unit |
Density | 0.93-9.98 | g/cm3 |
Tensile strength | 25-28 | Mpa |
Compression strength | 30-35 | Mpa |
Elongation at break | 270-360 | % |
Shore D hardness | 62-66 | HD |
Coefficient of friction | 0.12-0.16 | |
Notched Impact strenth charpy | 85-120 | kj/mm2 |
Duct Bank Spacers / Underground Utility Duct Bank Spacers for Conduit Lines in Trenches - Conduit In-Casing. Underground Duct Bank Spacers and bore spacers allow telecommunications and power utility providers to quickly and easily install underground lines within hazardous trenches for proper spacing beneath roadways, rail lines, or any other structure. If you want to some information,you can check our website https://www.abosnuhmwpe.com/ or https://abosnplastic.en.made-in-china.com/product/LwqAMUidbEaV/China-UHMWPE-Pipe-Support-Block-Wear-Resistant-HDPE-Pipe-Support-Block.html/ Contact us E-mail：fiona@dzabosn.com Whatsapp:+86 175 5341 8926 Phone:+86 175 5341 8926
