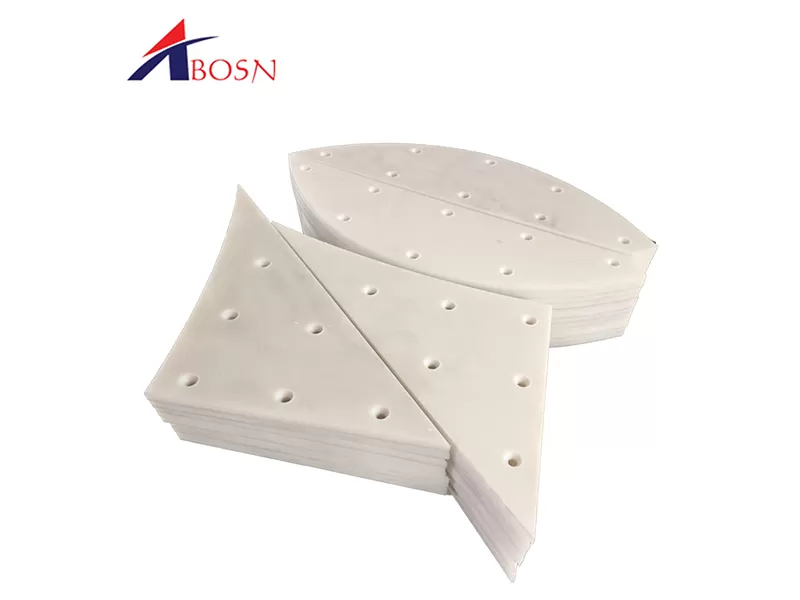

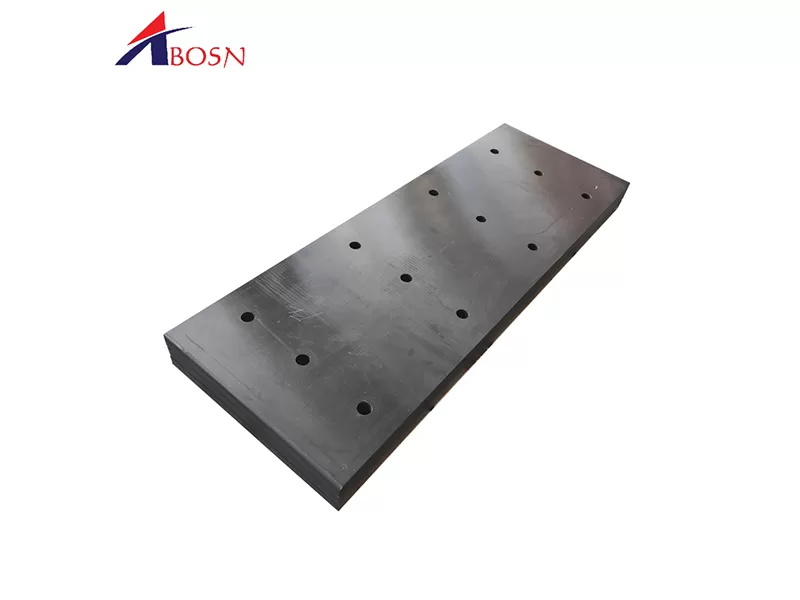

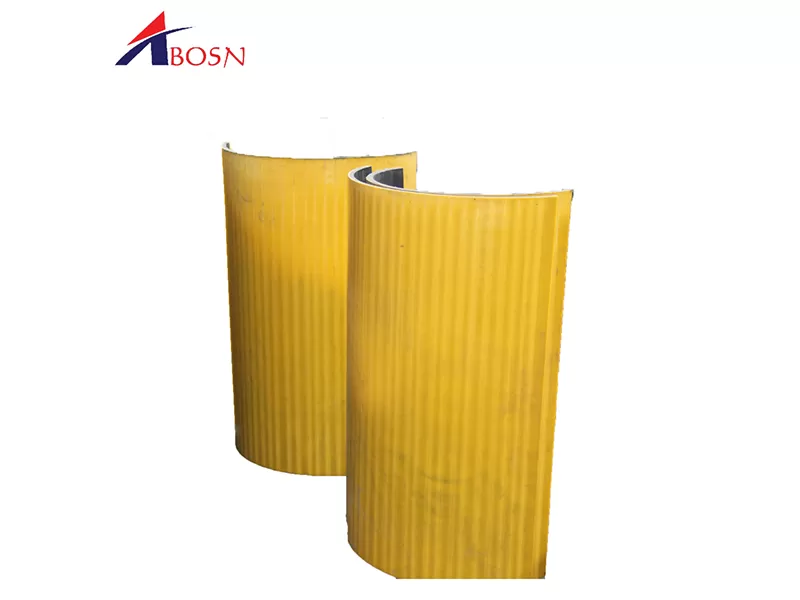

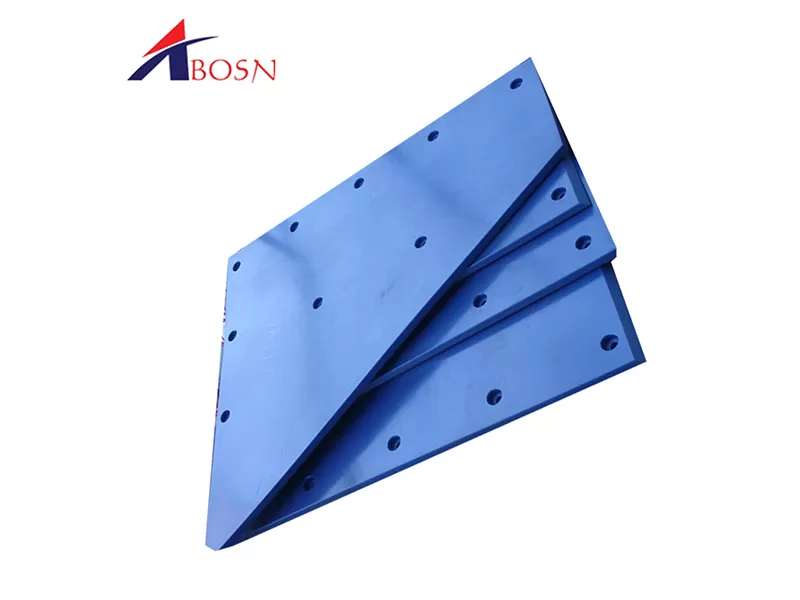

Wear Resistance UHMWPE Plastic Liner Screw Conveyor Liner UHMWPE Wear Liners

Share:
Product details

What is hdpe plastic liner / uhmwpe liner ?

 The advantages are self-lubrication, wear resistance and Impact resistance of UHMWPE make it to be chosed by the chute liner, coal bunker liner, truck liner, mixing silo liner and other project whose convey or cohere easily when it been unloaded and delivered .

  The UHMWPE truck liner is the best supporting facilities to protect the truck with the feature of non-stick, fast unloading, wear resistance and corrosion resistance. It is provide the fast and stable deliver of coal, cement, wheat, sugar and other powder and granular product. The UHMWPE truck liner / coal liner is can be made as your requirement . Any size, color and logo are available .

Property

Value

Density

0.94~0.98 g/cm³

Working temperature

-269~85℃

Melting temperature

130~160℃

Elongation break

350%

Tensile strength

45.3MPa

Rockwell hardness

R57

Bending strength

23MPa

Compressive strength

≥30 MPa

Impact strength

100~160KJ/m³

Charpy notched impact strength

≥140 KJ/m²

Ball indentation hardness

≥40 N/mm²

Heat conductivity

0.14~0.16%(m/m)

Water absorption

≤0.01%


Key properties of UHMWPE liner, coal bunker liner:

· No incrustatons of bulkmaterial

· No bridging caused in hoppers

· Enhanced protection of plan tand machinery against wear

· Faster bulk material flow

· Costo flining exist hopper with PE1000 is one third of the cost of mild steel

· PE-UHMW is half the weight of steel, despite being three times as thick

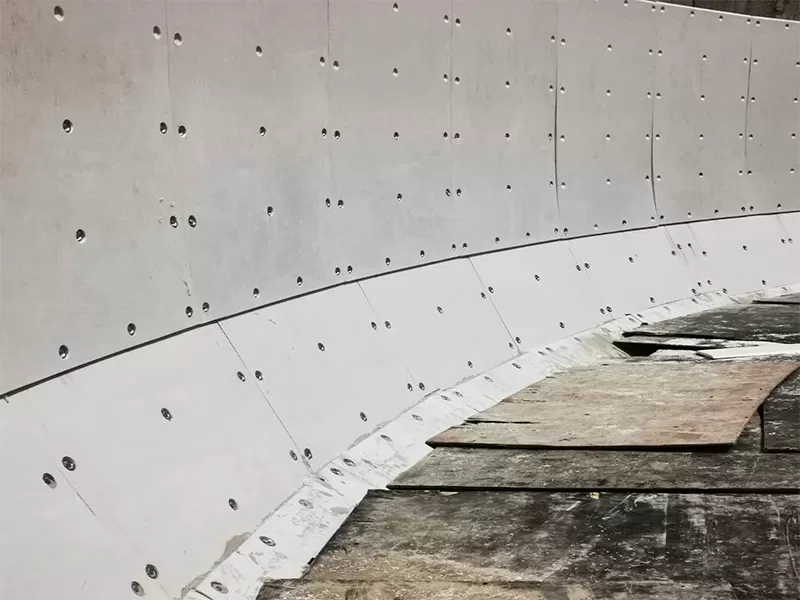

UHMWPE Coal Bed Chute Liners will help eliminate sticking problems. In the processing of bulk goods, equipment is often lined with a UHMW plastic material to promote the efficient flow of goods from one process or stage to the next. These liners for chutes, hoppers, silos, and industrial truck beds offer low friction and are abrasion and corrosion resistant, providing a long wear-life and reducing downtime in processing plants. They can be fastened to concrete, gunite, steel, and wood, making them both effective and versatile.

Wear Resistance UHMWPE Plastic Liner Screw Conveyor Liner UHMWPE Wear Liners
