What is hdpe plastic liner / uhmwpe liner ?

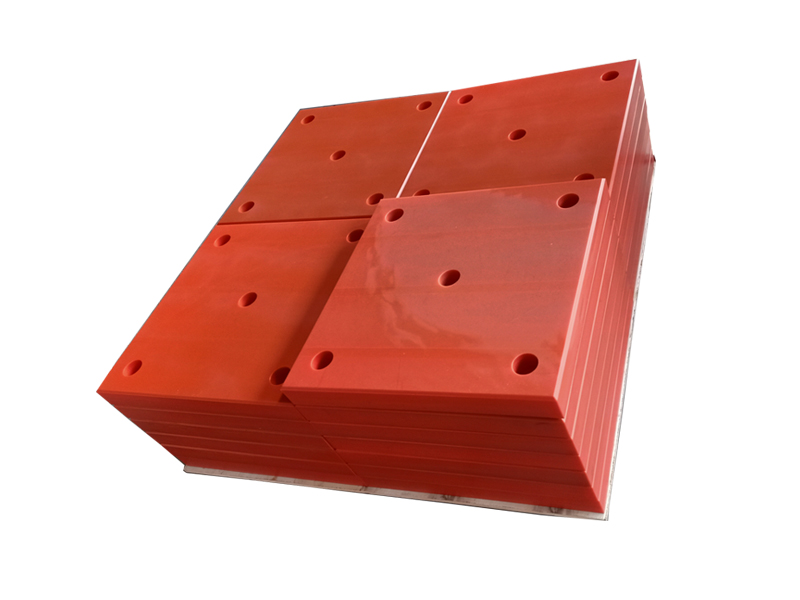

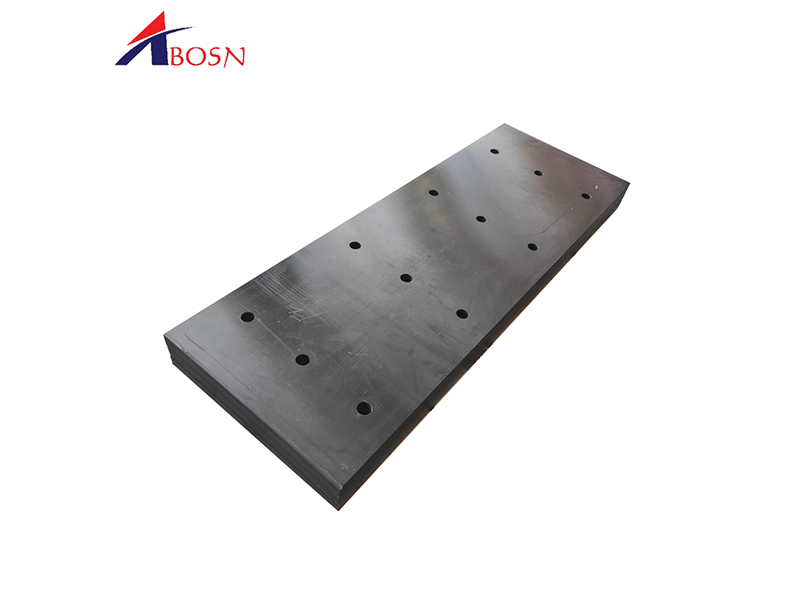

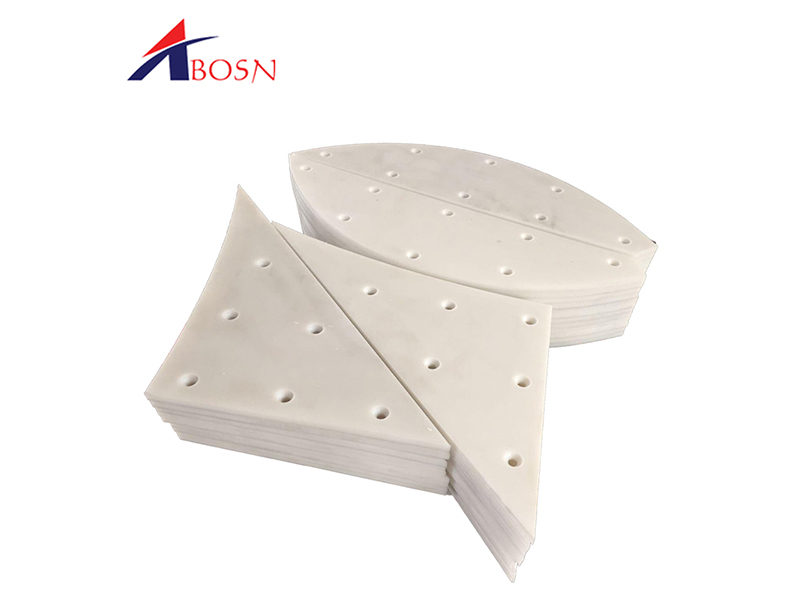

UHMWPE Liner advantage is self-lubrication, wear resistance and Impact resistance . That is why uhmwpe can be used as chute liner, coal bunker liner, truck liner, mixing silo liner and other project whose convey or cohere easily when it been unloaded and delivered .We have many types of UHMWPE PE 1000 liner
| Item | Test result | Unit |
| Density | 0.93-9.98 | g/cm3 |
| Tensile strength | 25-28 | Mpa |
| Compression strength | 30-35 | Mpa |
| Elongation at break | 270-360 | % |
| Shore D hardness | 62-66 | HD |
| Coefficient of friction | 0.12-0.16 | |
| Notched Impact strength charpy | 85-120 | kj/mm2 |

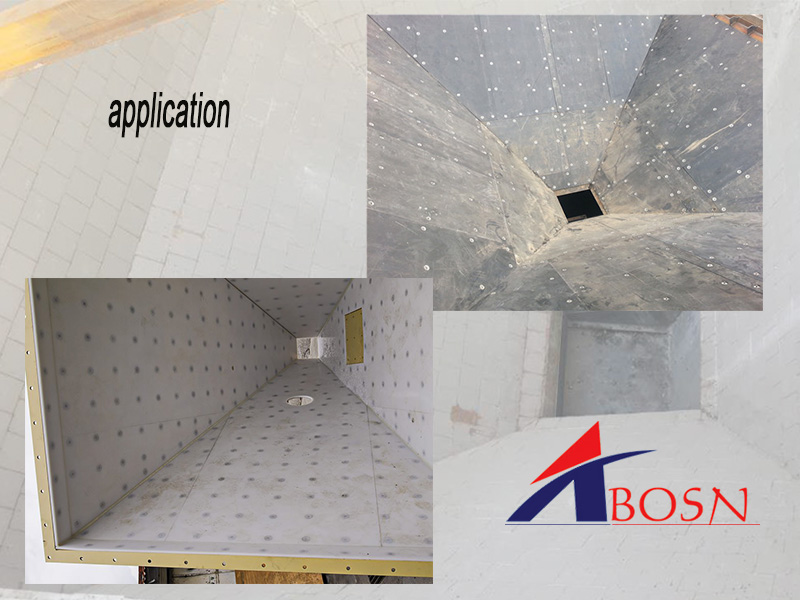

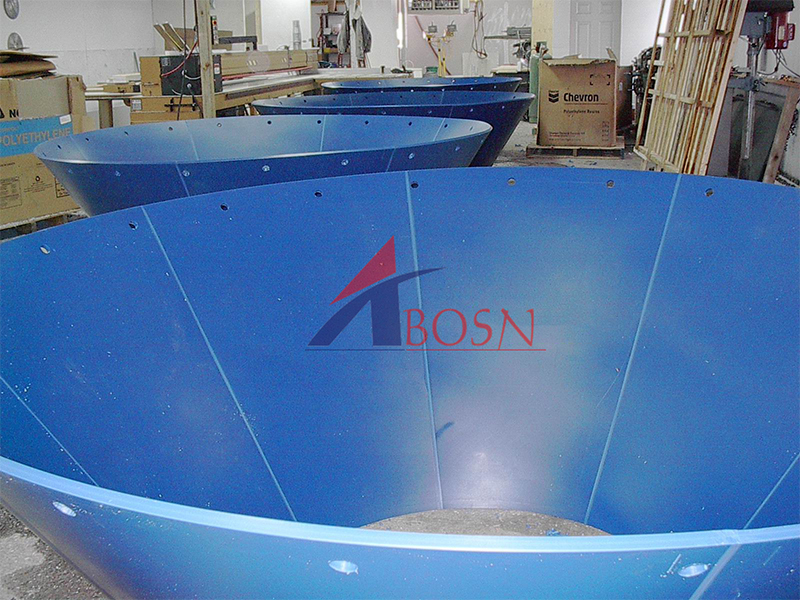

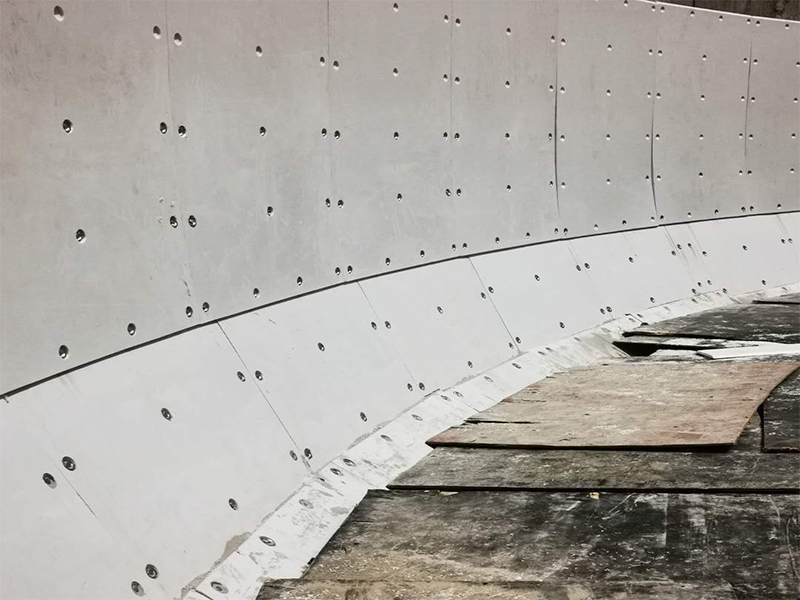

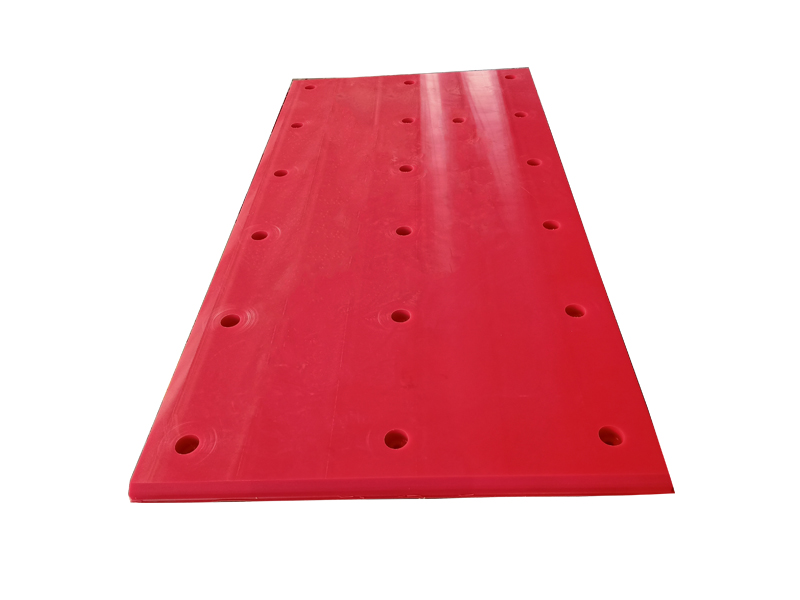

Type A : Chute liner / silo liner /Chutes,Silos,Bins,Launders /bucket liner / coal mine liner ...
Chutes, silos, Bins, Launders for fines handling declaimer buckets conveyor skirting etc. where the surface to be lined needs excellent flow ability and abrasion wear resistance.

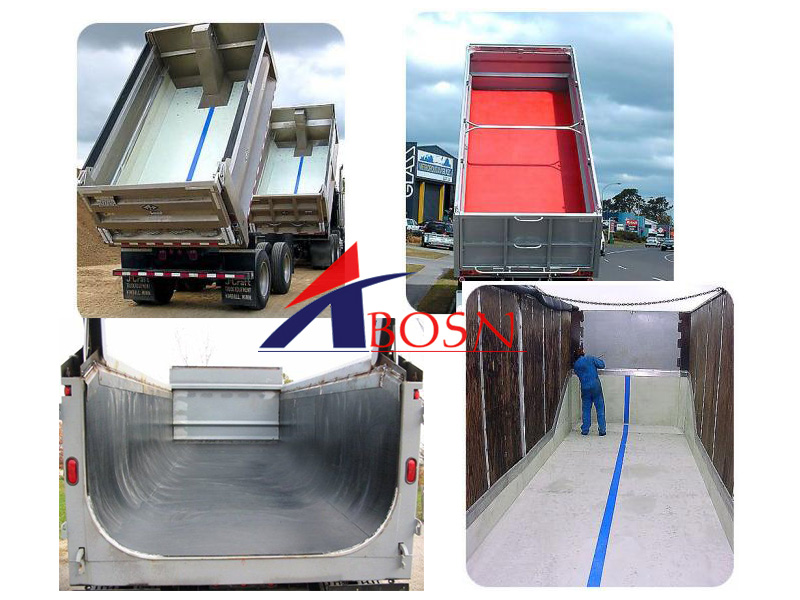

Type B :UHMWPE Truck bed liner
The UHMWPE truck liner is the best supporting facilities to protect the truck with the feature of non-stick, fast unloading, wear resistance and corrosion resistance. It is provide the fast and stable deliver of coal, cement, wheat, sugar and other powder and granular product. The UHMWPE truck liner / coal liner is can be made as your requirement .

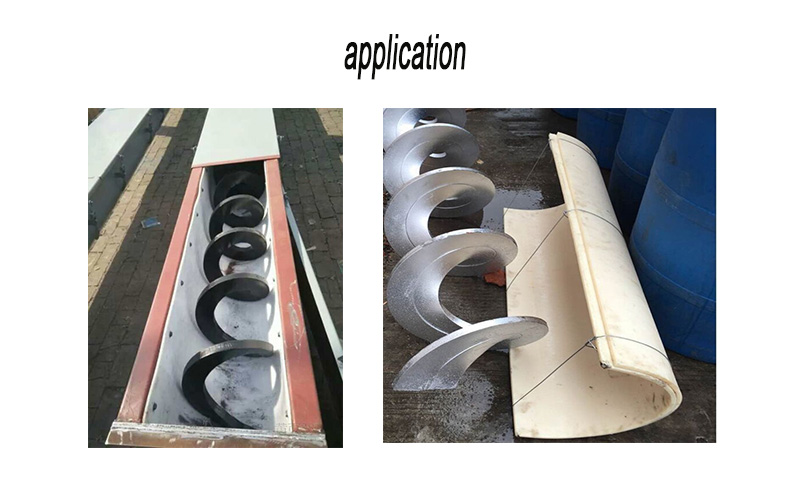

Type C :U Shape screw conveyor liner
A major benefit of shaftless UHMWPE screw conveyors is the elimination of intermediate hanger bearings to support the screw sections. Intermediate hanger bearings are a constant maintenance issue and can be a restriction to bulk material flow. Shaftless screw conveyors rely on trough UHMWPE liners to support the shaftless spiral and provide a bearing surface.
