UHMW PE is the strongest and toughest of all polyethylene grades for marine applications. Shandong Xinxing successfully help our customers finished many projects.

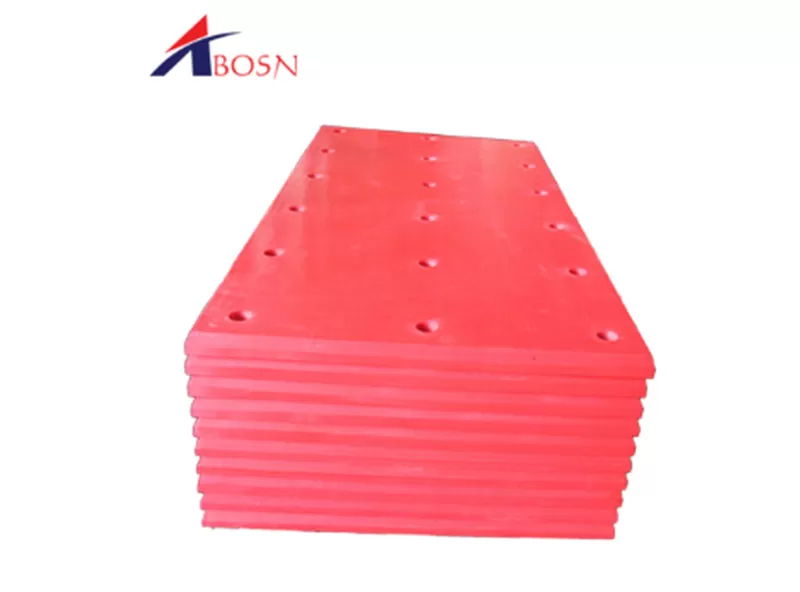

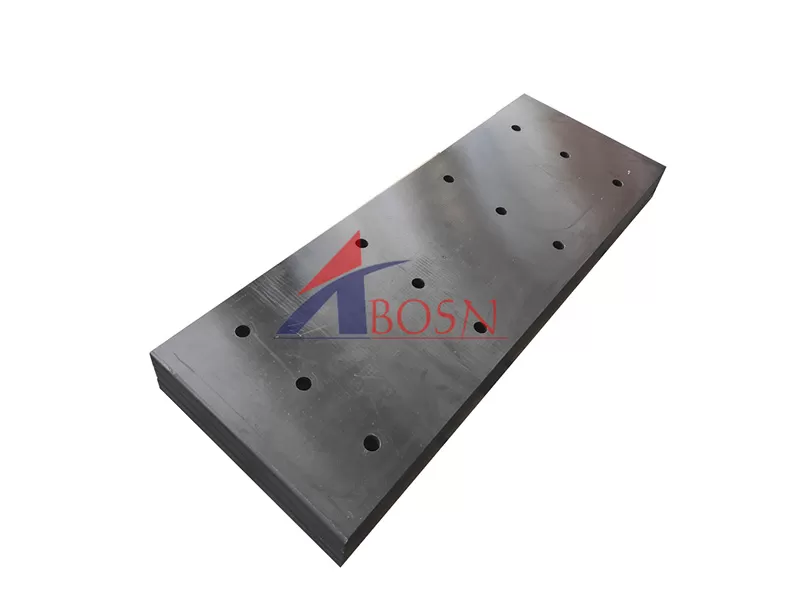

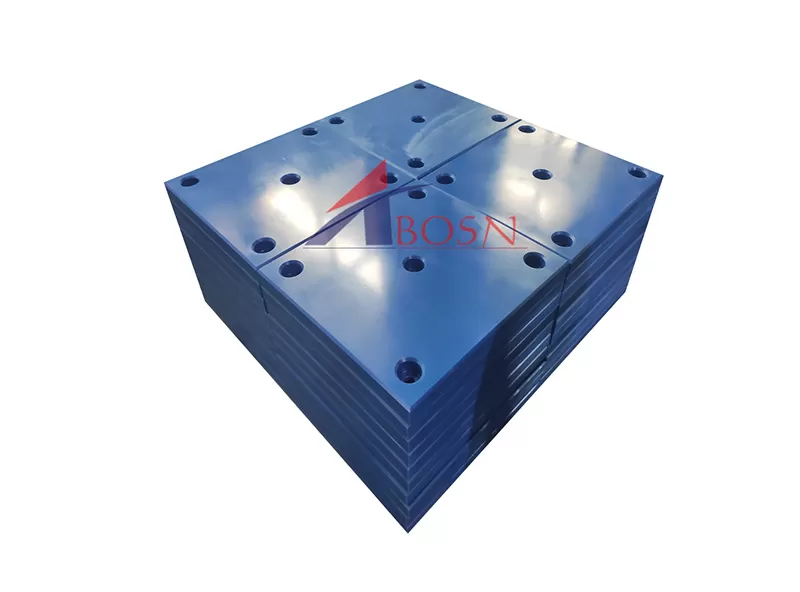

Virgin UHMWPE marine fender pads features:
● Low friction coefficient
● Resists marine borers
● High abrasion resistance
● UV and ozone resistant
● Does not rot, split or crack
● Easy to cut and drill
UHMWPE marine fender application:
1. HARBOUR CONSTRUCTION
Profiles on quay walls, rubbing blocks to cover wood and rubber
2. TRUCK DOCKS
Fenders pads/blocks for dock protection
3. DREDGES
Wall fenders to protect dredge from barges
4. BOATS
Rubbing/Wear Strips, low friction bushings (low to med load only)
5. PILINGS
Fenders, wear pads and slides
6. FLOATING DOCKS
Wear pads where the dock meets pillage, bearings for pivots, fenders, slides.
Specification
UHMWPE Flat Fender Pad, UHMWPE Corner Fender Pad, UHMWPE Edge Fender Pad are all available
OEM service, size &color as per your request.
Properties
| Item | Test method | Unit | UHMWPE1000-V | UHMWPE1000-DS |
| Density | ISO1183-1 | g/cm3 | 0.93-0.95 | 0.95-0.96 |
| Yield Strength | ASTM D-638 | N/mm2 | 15-22 | 15-22 |
| Breaking Elongation | ISO527 | % | >200% | >100% |
| Impact Strength | ISO179 | Kj/m2 | 130-170 | 90-130 |
| Abrasion | ISO15527 | Steel=100 | 80-110 | 110-130 |
| Shore Hardness | ISO868 | Shore D | 63-64 | 63-67 |
| Friction Coefficient(Static state) | ASTM D-1894 | Unitless | <0.2 | <0.2 |
| Operating Temperature | - | ℃ | -80 to +80 | -80 to +80 |
Our Services
We focus on what our customers need and dedicate to produce satisfying products and innovate new products to our clients.
After-sales service
- Quality is Guaranteed
- We have Strict QC and make sure every step of processing is for specification compliance.
- Manufactured in ISO 9001:2008 facility with over 20 years of manufacturing and fabricating experience
Company information:
Established in 1989, Xinxin has become one of the largest and professional Engineering Plastic products manufacture in China. Our UHMWPE products are mainly including UHMWPE sheet, outrigger pads, fender pads, wear-resisting liners, uhmwpe parts like chain guides, suction box cover roller... , also including HDPE sheets parts, ground protection mats , ice rink products...
