Product Description

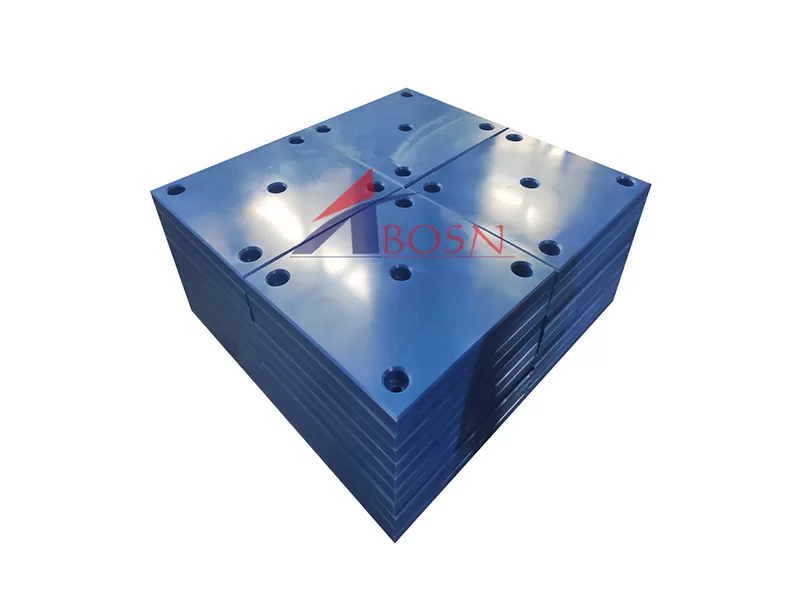

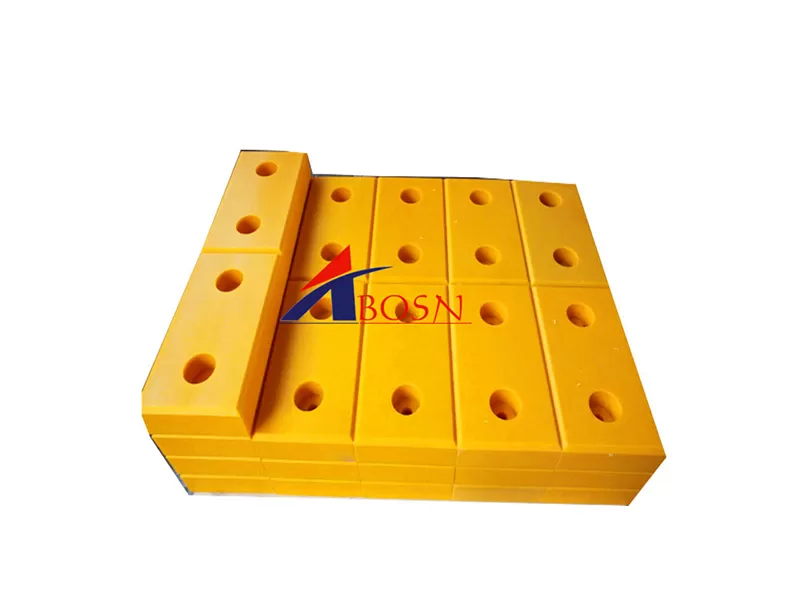

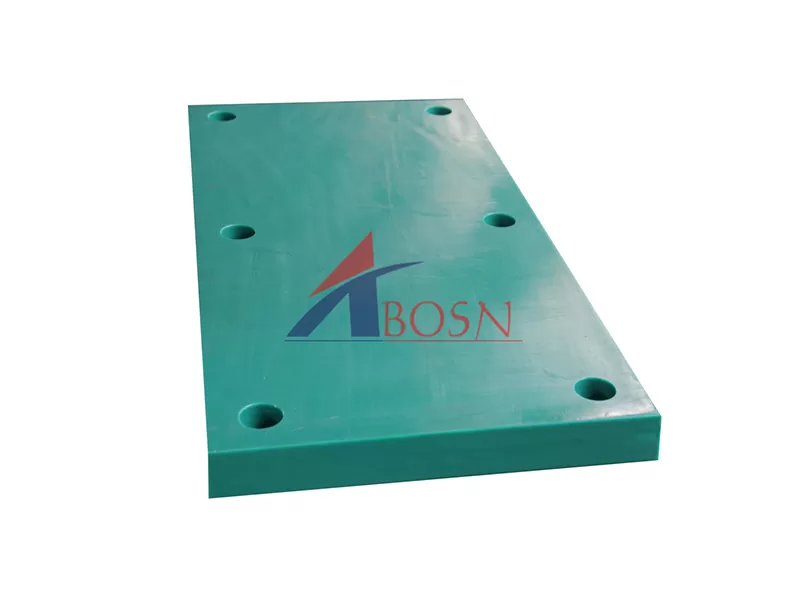

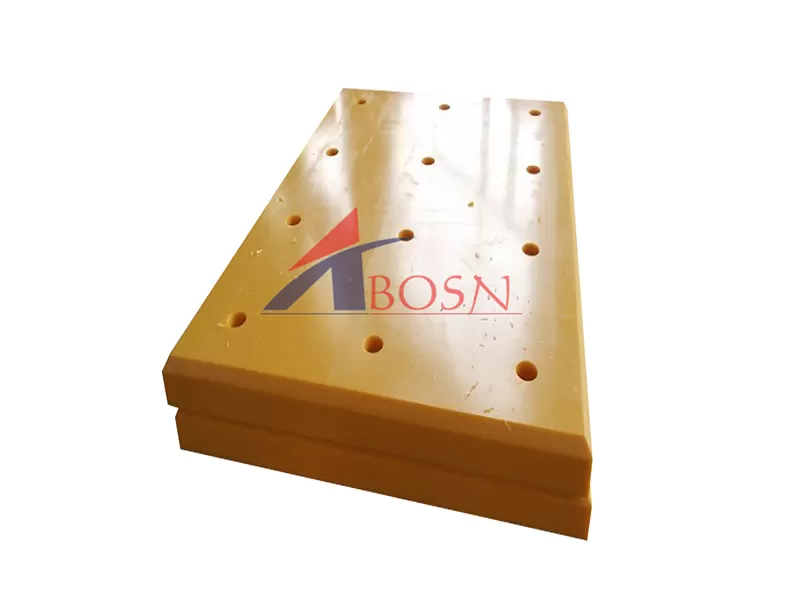

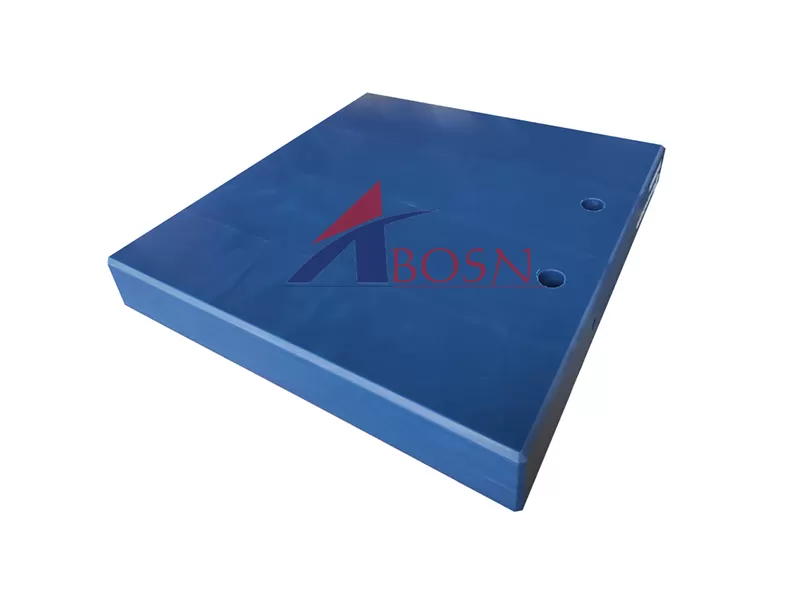

Excellent Corrosion Resistant UHMWPE Marine Fender Face Pad
UHMWPE(Ultra-high Molecular Weight Polyethylene) fender pad is harder than HDPE fender pad. If the port handing capacity is huge, we recommend to choose UHMWPE fender pad. Comparing with HDPE fender pad.UHMWPE fender pad is much more stiff and the working temperature range of UHMWPE fender pad is from -269ºC to 85ºC
Advantages of UHMWPE fender pad
Highest abrasion resistance of any polymer, 6 times more abrasion resistant than steel
Very low water absorption
Excellent impact resistance
Good corrosion & chemical resistance
Noise-absorption & Vibration-absorption
Data Sheet of UHMWPE fender pad
Name | UHMWPE | Size | 500*500*20mm |
Item | Unit | Standard | Result |
Impact strength | kj/m2 | / | 131 |
Bending strength | mpa | / | 27 |
Tensile strength | mpa | / | 22 |
Breaking elongation | % | / | 152 |
Water absorption | % | / | 0.007 |
Friction factor | / | 0.18 | |
Abrasion loss | g | / | 0.0017 |
Indentation hardness of ball | N/mm2 | / | 46 |
Density | g/cm3 | / | 0.96 |
Distortion temperature | ºC | / | 85 |
How to start one order if the clients are interested in UHMWPE fender pad?
In general, our clients will send the drawing of UHMWPE fender pad, when confirming the drawing details, quantity and color the clients need, we will update quotation.
If you don't have the drawing, we can according the application and demand design for you.
Any more question, just free to let me know.
