UHMWPE Durable Lasting Crane Outrigger Pads

Inquire Now Next Product

Product details

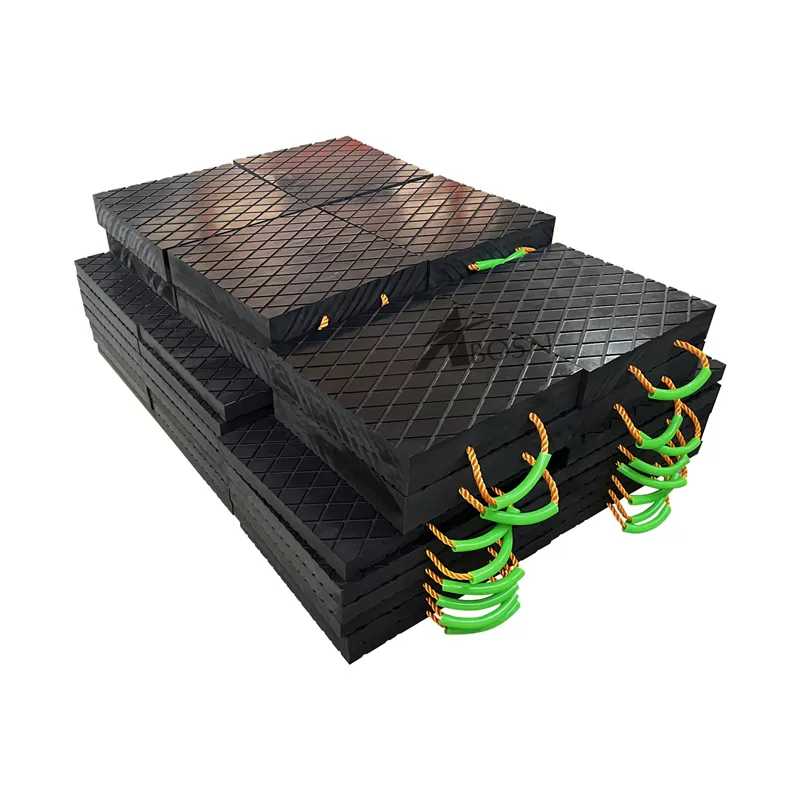

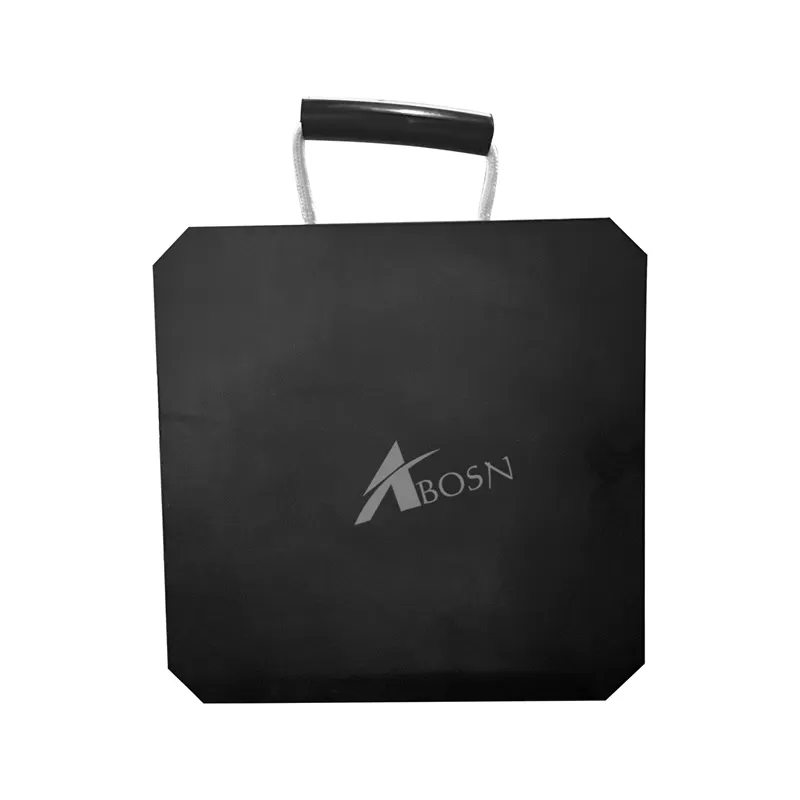

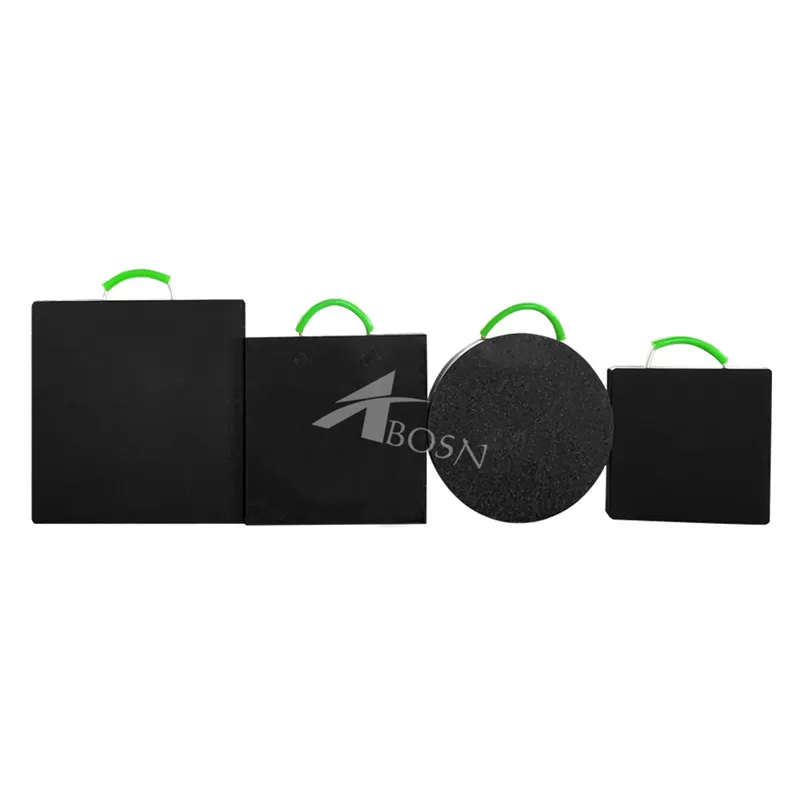

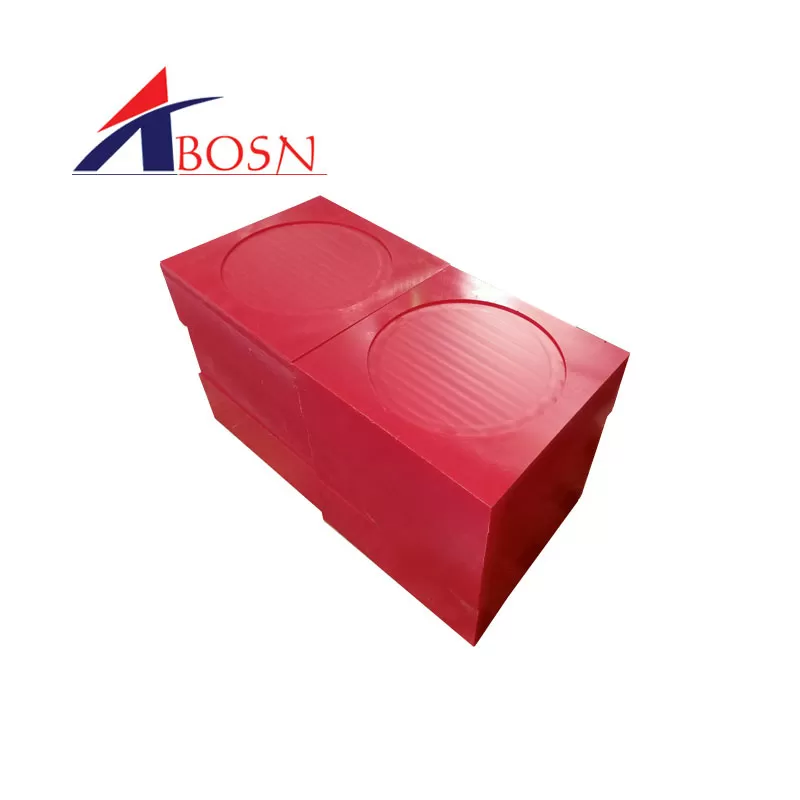

UHMWPE Crane Boom Wear Pads Outrigger Crane Mats

Composite UHMWPE crane outrigger pads made from UHMWPE (ultra high molecular weight polyethylene) and

are significantly more durable and lighter than traditional wood or steel pads.

Wood outrigger pads tend to splinter, hold water, and rot overtime.

Steel and aluminum pads tend to corrode, discolor, warp, and are heavy .

Wear Resistant UHMWPE Crane Foot Support Pad Outrigger Pad

We are pleased to say we are now able to offer the additional service of stamping each outrigger pad with your Company Name,

Vehicle Registration Number, Telephone Number etc.

Maximum of three lines per pad.

Good discounts given for bulk orders.

Thickness（inch）	Pad size(inch)	Part Number	45° Load	Vertical Load	Pad Weight
1”Square	18×18	X1T1818	14 tonnes	25 tonnes	5.00kgs
1”rectangle	20×24	X1T2024	16 tonnes	27 tonnes	7.63kgs
1”Square	24×24	X1T2424	16 tonnes	34 tonnes	9.15kgs
1”Square	30×30	X1T3030	18 tonnes	36 tonnes	14.3kgs
1”Square	36×36	X1T3636	19 tonnes	42 tonnes	20.6kgs
1”Square	48×48	X1T4848	22.5 tonnes	59 tonnes	36.62kgs
1”Round	30”Dia	X1TR30	12 tonnes	28 tonnes	11.23kgs
1”Round	36”Dia	X1TR36	15 tonnes	32 tonnes	16.16kgs
1”Round	48”Dia	X1TR48	18 tonnes	45 tonnes	28.75kgs

1-2/1” Square	18×18	X1.5T1818	14 tonnes	25 tonnes	7.73kgs
1-2/1” Square	24×24	X1.5T2024	16 tonnes	27 tonnes	13.73kgs
1-2/1” Square	30×30	X1.5T3030	19 tonnes	37 tonnes	21.46kgs
1-2/1” Square	36×36	X1.5T3636	20 tonnes	43 tonnes	31.00kgs
1-2/1” Square	48×48	X1.5T4848	23 tonnes	59 tonnes	55.00kgs
1-2/1” Round	30”Dia	X.1.5TR30	14 tonnes	28 tonnes	16.85kgs
1-2/1” Round	36”Dia	X1.5TR36	15 tonnes	32 tonnes	24.24kgs
1-2/1” Round	48”Dia	X1.5TR48	18 tonnes	45 tonnes	43.13kgs

2”Square	18×18	X2T1818	14 tonnes	26 tonnes	10.30kgs
2”rectangle	20×24	X2T2024	18 tonnes	28 tonnes	15.26kgs
2”Square	24×24	X2T2424	18 tonnes	28 tonnes	18.31kgs
2”Square	30×30	X2T3030	19.5 tonnes	38 tonnes	28.62kgs
2”Square	36×36	X2T3636	20 tonnes	44 tonnes	41.20kgs
2”Square	48×48	X2T4848	25 tonnes	63 tonnes	73.25kgs
2”Round	30”Dia	X2TR30	15 tonnes	30 tonnes	22.47kgs
2”Round	36”Dia	X2TR36	16 tonnes	32 tonnes	32.33kgs
1”Round	48”Dia	X2TR48	19 tonnes	45 tonnes	57.51kgs

2-2/1” Square	24×24	X2.5T2424	17.5 tonnes	28 tonnes	22.89kgs
2-2/1” Square	30×30	X2.5T3030	19 tonnes	39 tonnes	35.76kgs
2-2/1” Square	36×36	X2.5T3636	20 tonnes	45 tonnes	51.50kgs
2-2/1” Square	48×48	X25T4848	24 tonnes	60 tonnes	91.56kgs
2-2/1” Round	30”Dia	X2.5TR30	15 tonnes	29 tonnes	28.09kgs
2-2/1” Round	36”Dia	X2.5TR36	15.3 tonnes	33 tonnes	40.41kgs
2-2/1” Round	48”Dia	X2.5TR48	19 tonnes	46 tonnes	71.88kgs

3” Square	24×24	X3T2424	18tonnes	29 tonnes	27.47kgs
3” Square	30×30	X3T3030	20 tonnes	40 tonnes	42.92kgs
3” Square	36×36	X3T3636	22 tonnes	47 tonnes	61.80kgs
3” Square	48×48	X3T4848	26 tonnes	66 tonnes	109.876kgs
3” Round	30”Dia	X3TR30	15 tonnes	30 tonnes	33.70kgs
3” Round	36”Dia	X3TR36	16 tonnes	36 tonnes	48.49kgs
3” Round	48”Dia	X3TR48	20 tonnes	51 tonnes	86.26kgs
