Crane Outrigger Pads Manufacturers outrigger pads for boom truck stabilizer pads

Share:
Product details

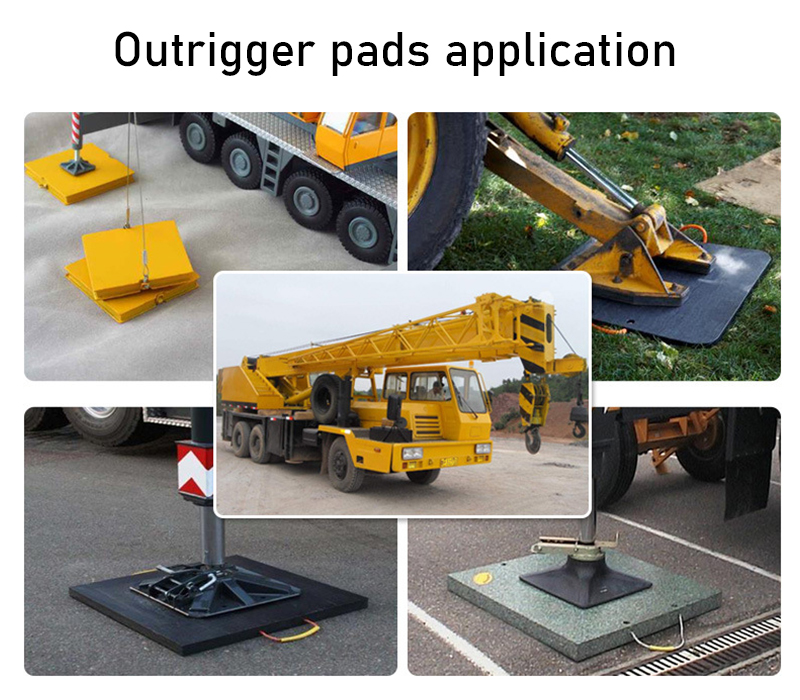

Crane outrigger pads can provide more stable support for heavy construction machinery vehicles such as cranes and concrete pump trucks.The outrigger pad of the crane is composed of two parts: the plate body and the hand rope. The plate body is made of UHMWPE composite material through a special process of high temperature and high pressure. The portable rope is made of nylon material. The end of the movable rope board is embedded in the board body for easy carrying and arrangement.


Crane Outrigger Pads Manufacturers outrigger pads for boom truck stabilizer pads

Outrigger pads standard size

Thinckness

Size

Load Capacity(TONS)

Weight

MM

MM

45°

Vertical

KGS











25MM

500*500

30

55

6.25

600*600

35

60

9

800*800

40

81

16

1000*1000

43

93

25

1200*1200

50

130

36

Dia.800

38

78

12.5

Dia.1000

41

91

20

Dia.1200

48

110

28











40mm

500*500

31

56

10

600*600

36

61

14.4

800*800

42

82

25.6

1000*1000

44

94

40

1200*1200

51

131

57.6

Dia.800

40

80

20

Dia.1000

42

92

32

Dia.1200

48

130

45











50mm

500*500

31

58

12.5

600*600

40

62

18

800*800

43

85

32

1000*1000

45

98

50

1200*1200

55

140

72

Dia.800

41

83

25

Dia.1000

43

95

40

Dia.1200

52

137

56







60mm

800*800

43

86

38.4

1000*1000

45

99

60

1000*1000

53

133

86.4

Dia.800

41

84

30

Dia.1000

42

96

48

Features of Light weight Crane outrigger pad:
* Do not absorb moisture and will not swell up over time due to exposure outdoors.
* Good impact intensity, Do not lose their impact strength over time.
* Good breaking elongation,so they will bend but not break under extreme loads.
* Will not rot,crack,splinter, or absorb moisture, safer to use in the field compared to other wood based pads.
* Can work in in adverse weather conditions.
* Durable & Long Lasting, Cost Efficient compared to Steel or Aluminum.
* Amazingly light compared to steel pads, and easier to mount, replace.
* Non-stick surface, easy to clean.
* Corrosion and chemical resistant.
* Lower maintenance costs.
* Storage-Friendly.

 Crane Outrigger Pads Manufacturers outrigger pads for boom truck stabilizer pads
